Ionizing Blowers

Ionising air blowers are probably one of the most universal types of devices for neutralization of static electricity. They include portable models suited for being put on worktables, as well as models intended for stable position. Air blowers are able to neutralize materials up to 2,5 m distance. They are particularly convenient for components and materials with uneven surface, for conveyor belts and moving foils or for manufacturing and assembling on workplaces, etc. Ionising air blowers are composed of a case with a fan which blows air over electrically powered emitter tips. All objects or materials put in the air flow are neutralized. Air blowers include also variants suitable for ATEX environment with risk of explosions or variants suitable for very clean environments Clean Room up to Class ISO4.

Typical Applications:

Injection, Blow Moulding, Vacuum Forming of Plastics

Packaging

Printing, Laminating

Surface Treatment, Coating

Extrusion, Cutting and Rewinding of Foils

Manufacturing and Assembling Electronics on Workplaces

Considering large variety of ionizing blowers, please send us your requirements and we will suggest the optimal type for your needs.

Industrial blowers: VolumION
ATEX: HP-N-EX
General use: PC, PC2, XC, XC2, 6832, Guardian
Electronics, limited space: 6422e, 6432e, minION2
Critical applications: 5802i, 5810i, 5822i, 5832i

Ionizing Air Blower VolumION

Working width 500 mm
Working distance 1500 mm
Air volume variable, max. 600 m3/h
Weight 11 kg
Ambient temperature 0 – 55 °C
Operating voltage 7 kV AC
Power unit A2A7S for 230 V or A3A7S for 400 V
On request filter on input
Typical applications foil winding and unwinding, injection molding

Ionizing Air Blower HP-N-Ex

Working width 500 mm
Working distance 1500 mm
Weight 12,5 kg
Ambient temperature 0 – 40 °C
Power unit integrated for 230 V
Note: into hazardous environments with risk of explosion up to class Eex II A T 4

Ionizing Air Blower MinION2

Working distance 900 mm
Ion balance 0 ± 10 V
Discharge time < 2,0 s from 1000 V to 100 V
(from 30 cm distance)
Air volume 36 – 72 m3/h
Weight 0,5 kg
Ambient temperature 0 – 50 °C
Power unit integrated, 24 V DC
On request with hinged arm
Typical applications manufacturing of electronics;
reduction of contamination;
manufacturing and processing of plastics

Ionizing Air Blower Guardian

Working width area 600 x 1200 mm
Ion balance 0 ± 5 V
Discharge time < 3 s from 1000 V to 100 V
(from 45 cm distance)
Air volume 255 – 510 m3/h
Weight 7,3 kg
Ambient temperature 0 – 50 °C
Power unit integrated, 230 V
On request filter on input
Typical applications manufacturing of electronics; reduction of contamination;
pharmaceutics;
optics

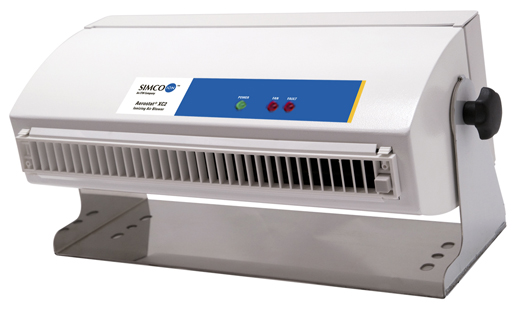

Ionizing Air Blower Aerostat XC2

Working width area 900 x 1800 mm
Ion balance 0 ± 10 V
Discharge time 1 s from 1000 V to 100 V
(from 30 cm distance)
Air volume 2690 – 4248 l/min.
Weight 3,2 kg incl. stand
Ambient temperature 10 – 35 °C
Power unit 100 – 240 V, 50/60 Hz
On request filter on input
Typical applications manufacturing of electronics; reduction of contamination;
manufacturing of displays

Ionizing Air Blowers Model 6422e and Model 6432e

Working width working distance up to 1200 mm
Ion balance 0 ± 20 V
Discharge time < 4 s from 1000 V to 100 V
(from 30 cm distance)
Air volume 1380 l/min.
Weight 0,6 kg incl. stand
Ambient temperature 0 – 50 °C
Power unit 24 V DC
Cleanroom Class Class 100 (209E; ISO5)
Typical applications manufacturing of electronics; reduction of contamination;
pharmaceutics;
optics

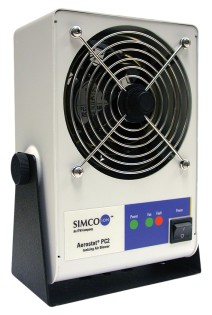

Ionizing Air Blower PC2

Extended Coverage Ionizing Blower

Working width area 300 x 1200 mm
Ion balance 0 ± 10 V
Discharge time
< 2,0 s from 1000 V to 100 V (from 30 cm distance)
Micropulse AC Ionization
Air volume 220 m3/h. (max. speed)
Weight 1,25 kg
Dimesions 23,1 x 17,3 x 8,4 cm
Ambient temperature 10 – 35 °C
Power unit integrated for 230 V, 50 Hz
On request filter on input
Typical applications manufacturing of electronics; reduction of contamination; manufacturing and processing of plastics

Ionizing Air Blower Model 6832

General Electronics Benchtop Blower

Working width 1000 mm
Ion balance 0 ± 10 V
Discharge time < 2,0 s from 1000 V to 100 V, (from 30 cm distance)
Air volume 220 m3/h. (max. speed)
Weight 0,92 kg
Dimesions 18,6 x 13 x 6,0 cm
Ambient temperature, humidity 10 – 32°C, 30-70%  RH
Power unit integrated 24 V DC
Ionizing method steady-state DC
Cleanroom Class ISO 14644-1 Class 4 (Fed Std. 209E Class 10)
Typical applications manufacturing and assembling of electronics;
semiconductors;
reduction of contamination

Ionizing Air Blower Model 5810i

Ionizing overhead air blower. Excellent ion balance (with external sensor better than ±1 V), suitable for clean rooms up to ISO 14644-1 Class 4.

Working width (models with 2 or 3 fans) area 800 x 900 mm,
800 x 1100 mm,
800 x 1200 mm
Ion balance 0 ± 3 V (with NOVx better than ±1 V)
Discharge time < 3 s from 1000 V to 100 V (from 45 cm distance)
Air volume 183 m3/h
Weight 4,68 kg
Ambient temperature 10 – 32 °C
Power unit 100 – 240 V, 50/60 Hz
On request Senzor, FMS, Auto Clean
Typical applications manufacturing and assembling of electronics and semiconductors;
reduction of contamination;
pharmaceutics;
optics
